Ring Circular Polarized Antenna for 88-108 MHz

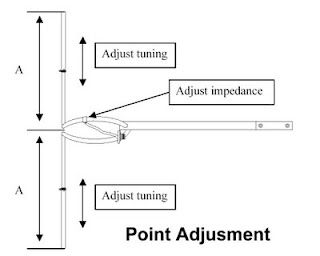

This simple antenna called Ring Circular Polarized Antenna. You should construct this antenna with .5 inch copper. With a little experiment I did, antenna can be tuned in 88-108 MHz FM frequency range with only changing the vertical elements. The secret is a ratio of vertical and horizontal dimensions.

In FM transmitter you need signal transmitted to any direction so you need antenna type that transmitted with polarized circularly. Antenna Gain -3.2 dB, bandwith 500 KHz with maximum power handling 500 Watts. In order to use antenna on 88-108 MHz, broadband antenna type must be designed with no tune involved.

How to double Your Transmitter Power
Amplification of signal to transmit based on antenna gain in Decible. Power from transmitter be able to doubled, tripled or even become more power. The value is called ERP (Emmittion Radiating Power). For Doubled your transmitter power to be ERP Power need stacked 4 antennas (3.12 dB gain antenna), 6 antennas (5.12 dB), 8 antennas (6.4 dB).

How to stack your antenna?
